8" Anti-Corrosion No Magnetic Johnson Wire Wrapped Screen Pipe With
Length 5.8m
water well screen pipe, johnson well screeen, rod based wire wrapped screen, wedge wire screen, stainless steel
strainer pipe, v wire slot tube, perfect roundness well screen
pipe, dewatering well screen, stainless steel lateral screens,
wedge wire filter candles, Rotary drum screens, strainer cylinder,
sand control well screen, oil well screen, rod based continuous
slot screens, header and hub laterals & hub radial laterals etc.
The welded water well screen pipe is made up of rods and warp. The
rod can be round wire, triangular wire or trapezoid wire. The warp
is triangular wire (V-shaped wire). Water well screens have a
structure and high open area, as well as accurate slot dimension.
At the same time, water well screen have heat-resisting,
anti-corrosive, good machine capability, last long, safety and
reliability and so on characteristics. It can be used in many kinds
of medium filtering.
Product Advantages:
1. 8" Anti-Corrosion No Magnetic Johnson Wire Wrapped Screen Pipe With
Length 5.8m
2. Selling point: High Strength, Anti-Corrosion, Easy Installation,
Anti-Pressure, Rust resistant
3. Surface treatment: Pickling and polishing
4. Slot size: 0.05-50mm
5. Length: 1m, 2m, 3m,10ft, 4m, 5m, 5.85m, 20ft
6. End connection: Welded rings, threaded male and female coupling,
flange
7. Well deep: v / wedge wire: 2.5x4mm Well deep: 200-300m,
v / wedge wire: 3x4.6mm Well deep: 350-450m
v / wedge wire: 3.0x6mm Well deep: 500-650m
Johnson Wire Wrapped Screen Pipe Features
1. High Open Area
More than 25% of open area allows water to seep through the
dewatering screen at a reduce speed, while allowing for a lower
flow resistance. The enhances the water removal rate, resulting in
a more efficient water removal process.
2. Non-clogging Performance
Continuous slots widen inwardly from the screen surface to minimize
the chance of sand clogging the slot opening,
3. Excellent Pressure Resistance
The wedge wire screen is welded in a single from with no weld seams
on the surface. Precise welding technology gives the screen its
strength, making it ideal from high pressure applications
4. Great Sand Barrier
Precisely machined slots keep sand, silt and clay from entering the
well, preventing abrasion.
5. Easy Installation
Compared to bridge slot screens or cement pipes, the wedge wire
well screen in lightweight and easy to lay on the ground. It is
also safe and convenient.
6. Material
The screen is available is galvanized, low-carbon steel, or
stainless steel in grades 304 and 316, Premium materials do not
retain sand and other impurities, ensuring a non-clogging
performance.
Technological Parameters of Johnson Wire Wrapped Screen Pipe Pipe
SIZE (INCH) | O.D (MM) | SLOT (INCH) | LENGTH (M) | COLLAPSE STRENGTH (PSI) | TENSILE WEIGHT (TON) | WRAP (thick x deep) (MM) | RODS (MM) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8MM/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.5 | 3.8MM/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8MM/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 2.5*4.0 | 3.8MM/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*4.6 | 3.8MM/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.2*6.0 | 5.0MM/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*4.6 | 3.8MM/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 2.5*4.0 | 3.5MM/50 |
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | | | | | |
ROUND |
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
Custom well screens
Inform us of your specifications for the water well screen,
including diameter, slot opening size, length and percentage of
open area. Based on that information, we can customized your
products.
Package:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
Quality assurance
1. Every production process has a special person to test to ensure
quality
2. Have professional engineers to check the quality

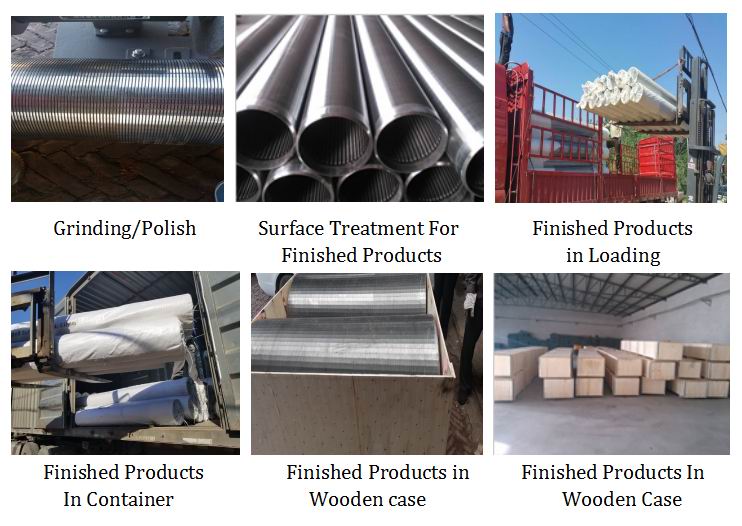

Johnson Wire Wrapped Screen Pipe Manufacturing Steps
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass
production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to
arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
