    Wedge Wire 304L Stainless Steel Wire Mesh Filter Self Cleaning V Shaped OD 620mm

    Ask Lasest Price
    Brand Name : Anping County Xinlu Wire Mesh Products Co.,Ltd
    Model Number : XL - Rotary Screen Drum - 06
    Price : Negotiable according to the specification
    Payment Terms : T/T
    Supply Ability : 300m2/month
    Delivery Time : 6-8days
    • Product Details
    • Company Profile

    Wedge Wire 304L Stainless Steel Wire Mesh Filter Self Cleaning V Shaped OD 620mm

    V Shape Self Cleaning Reverse Rolled Wedge Wire Rotary Drum Cylindrical Screen


    Rotary Drum Cylindrical Screen, also known as Johnson cylinderial pipe, Johnson sieve pipe, stainless steel sieve pipe, is widely used in oil, gas, water wells and sand control in the world, and it is especially important in chemical and environmental protection industries. It is one of the most widely used filter sieve tubes used in various oil, water resources recycling and resin collection materials.


    Reverse Rolled Wedge Wire Rotary Drum Cylindrical Screen adopts the world's most advanced full-wound welding production process, and the special T-shaped wire is wound and welded on a group of support wires arranged in a circle. Full-process welding guarantees the strict and continuous integrity of the product, so that it forms the ideal gap size, and has the maximum capacity to withstand high pressure. Due to the use of full-program welding, not only the strict continuous integrity of the product is guaranteed, but also the ideal gap size is formed. Compared with the welding process currently widely used in China, the full-welded wedge-shaped wire winding screen has the characteristics of smooth pipe surface, no production edges, no burrs, and uniform gaps without leaking grease.


    Details:

    Material: stainless steel wedge wire or custom.
    Surface profile: triangle wire.
    Support profile: triangle wire, round bar, and wedge wire.
    Slot size: 0.05 mm - 35 mm
    Cylinder diameter: 10 mm - 1200 mm
    Application: mine, coal, mineral and other application

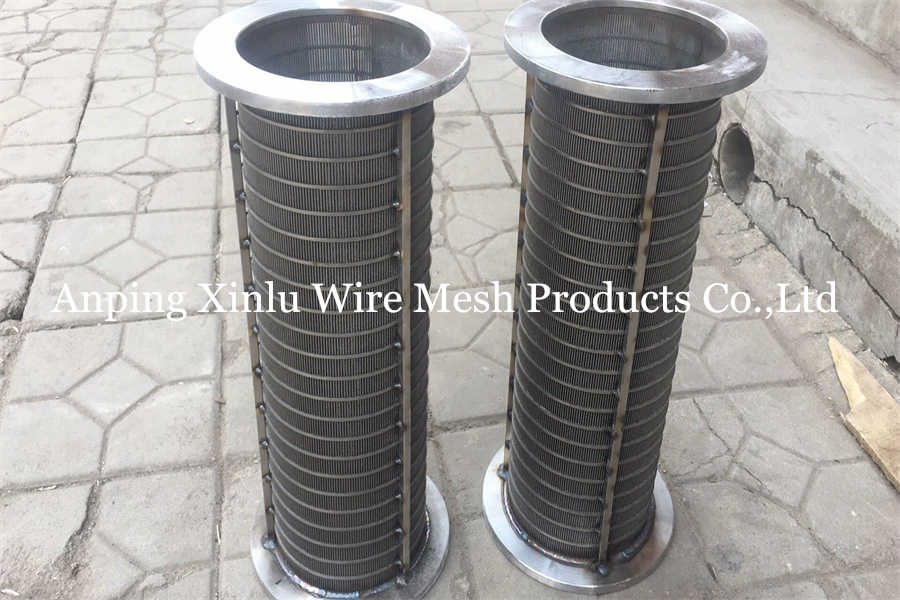

    Reverse Rolled Wedge Wire Rotary Drum Cylindrical Screen (internal circumferential wire with external axial support rods) is a kind of strainers that flow from inside to outside filtration, with smooth working surface inside. This type wedge wire screen pipe is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine, then be made to screen pipe through cutting, reverse rolled, welded processing.


    For special areas of application (among others, the starch industry) screen cylinders can of course also be manufactured in looped finish. Adjoining is an example of two end flanges. In this case, as well, almost all requirements by our customers can be realized after corresponding technical clarification.

    Xinlu factory can offer Reverse Rolled Wedge Wire Rotary Drum Cylindrical Screen in the standard specifications, the slot size from 0.2 mm to 1 mm, while pipe diameter from 100 mm to 914 mm, and manufacture pipe length is up to 3 m, the wedge wire screen pipe is commonly constructed with materials of grade 304 (1.4301) stainless steel.


    Specifications of Reverse Rolled Wedge Wire Rotary Drum Cylindrical Screen


    MaterialSS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
    OD RangeAccording to request and the actual flange and strengthen bar
    Normal ID176mm, 200mm, 230mm, 255mm. According to request
    Normal Length600mm, 602mm, According to request
    Normal Slot0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm.
    Slot DirectionRadial Direction
    Wedge Wire0.75x1.51x22x32x43x5
    Support Rod1.5x2.5; 2x31.5x2.5; 2x32x3; 2x4; 3x5; 3x62x4; 3x5; 3x6; 5x63x5; 3x6; 5x6
    End FinishingFlange, , Metal Ring, etc
    NoteCustomized According To Requirement

    Wire Size Of Rotary Drum Screen Basket

    PROFILE WIRE
    WIDTH(mm)1.501.502.302.301.803.003.703.30
    HEIGHT(mm)2.202.502.703.604.304.705.606.30

    SUPPORT ROD
    ROUND
    WIDTH(mm)2.302.303.003.703.30Ø2.5--Ø5mm
    HEIGHT(mm)2.703.604.705.606.30----


    FAQ


    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time?

    A: 3-5 days for Sample preparing , 15-25 working days for mass production.


    Q3. Do you have any MOQ limit for the order?

    A: Low MOQ, 3pc for sample checking is available.


    Q4. How do you ship the goods and how long does it take to arrive?

    A: Airline, sea shipping and rail transportation are all optional.

    Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.


    Q5. How to proceed an order?

    A: Firstly let us know your need specification or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customer confirms and places deposit for formal order.

    Fourthly We arrange the production.


    Q6. Is it OK to print my logo on the product?

    A: Yes. Please inform us formally before our production.

    ---------------------------------------------------------------------------------------------------------------


    Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
