    Johnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input Device

    Ask Lasest Price
    Brand Name : Anping County Xinlu Wire Mesh Products Co.,Ltd
    Model Number : XL - Wedge Wire Screen Pipe - 025
    Certification : CO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs/20days
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Johnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input Device

    Johnson wedge wire filter tube resin trap strainer pipe in Water Input Device

    Category: Resin Traps

    Material: stainless steel 304,304L,316,316L,321,430 or as per your request.

    Properties: resin trap

    Application: water-treatment, beer brewing, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, refining & petrochemical

    Product Details: Johnson wedge wire filter tube resin trap strainer pipe


    Johnson wedge wire filter tube resin trap strainer pipe are safety devices used on the outlet pipelines of ion exchange units, high-purity water systems, and activated carbon and media filters. In many systems, a valve failure can allow media to escape from the treatment vessel. Not only is the loss of this media expensive, but it can also easily cause damages to downstream pumping equipment. Placed inline, the johnson resin trap provides reliable protection against such damage.


    Characteristics of Johnson wedge wire filter tube resin trap strainer pipe

    1. Filter made of stainless steel trapezoidal wire, screen slot is v-shape, can effectively intercept resin impurities.
    2. Trapezoidal wire evenly circumferentially arrays on the support bar, ensure the screen filter area and non-obstructive, avoiding impurities concentrated.
    3. Resin trap all connected by welding, durable, long life.
    4. After working for some time, can filter backwash, multiple uses


    Application of Johnson wedge wire filter tube resin trap strainer pipe

    They are widely used for water, oil, and gas wells in the world. As China chief manufacturer and exporter, we export good quality water well screen to many countries. Main products cover bridge slot screen, wire wrapped well screen, stainless steel Johnson screen, water well screen, wedge wire screen, sieve bend screen, Johnson wedge wire resin trap strainer, and sand control screen. In addition, we also offer perforated pipes and base pipes for a good screen and Johnson screen.

    Specifications of Johnson wedge wire filter tube resin trap strainer pipe:

    TypeSlots mmΦAFlange DNL1mm
    RTF10.05, 0.1, 0.2 0.3, 0.5, 1.0

    45,57,76,89,108,

    133, 159, 219

    40,50,65,80,

    100,125,150,

    200

    442,496,547,

    600,654,705,

    758,812,863,

    916,970,1021,

    1074,1128,1179,

    1232, 1286

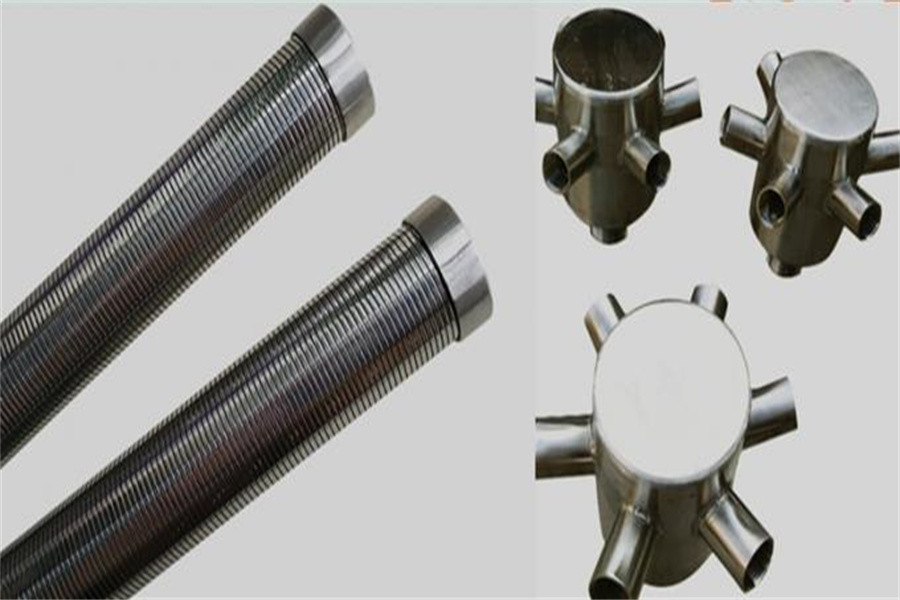

    Johnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input Device

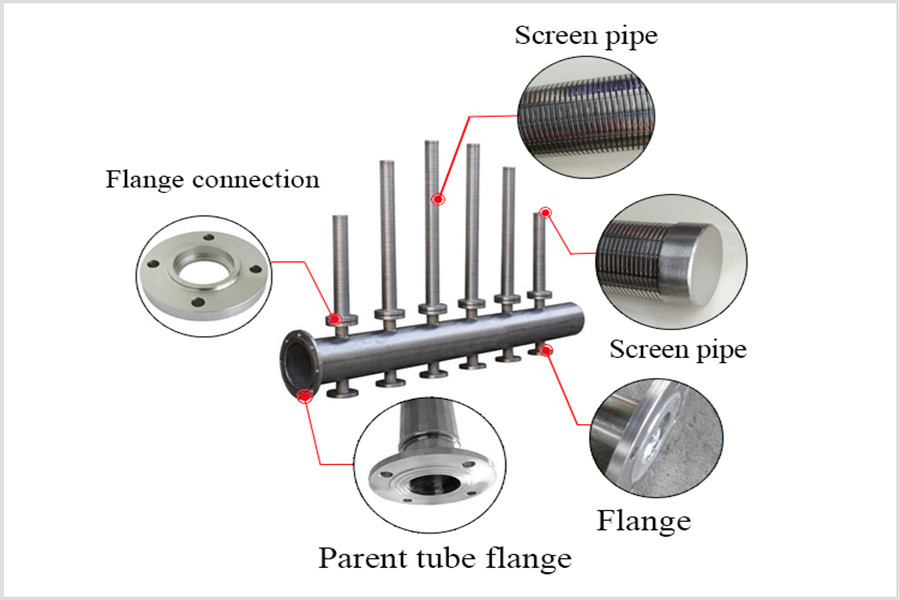

    Johnson wedge wire filter tube resin trap strainer pipe Specification

    No.Model Type

    N,D--mm

    D

    Branch Pipe Dia

    d (Φmm)

    Branch Pipe Number

    PN0.6/DN

    Dimension of main pipe

    1FY-XL-125125025-576-8DN80
    2FY-XL-160160028-576-8DN80
    3FY-XL-180180032-658-12DN80-DN100
    4FY-XL-200200042-898-12DN80-DN125
    5FY-XL-220220042-898-12DN100-DN125
    6FY-XL-250250057-898-16DN100-DN125
    7FY-XL-280280057-898-20DN100-DN150
    8FY-XL-300300057-898-20DN125-DN200
    9FY-XL-320320057-898-22DN125-DN200

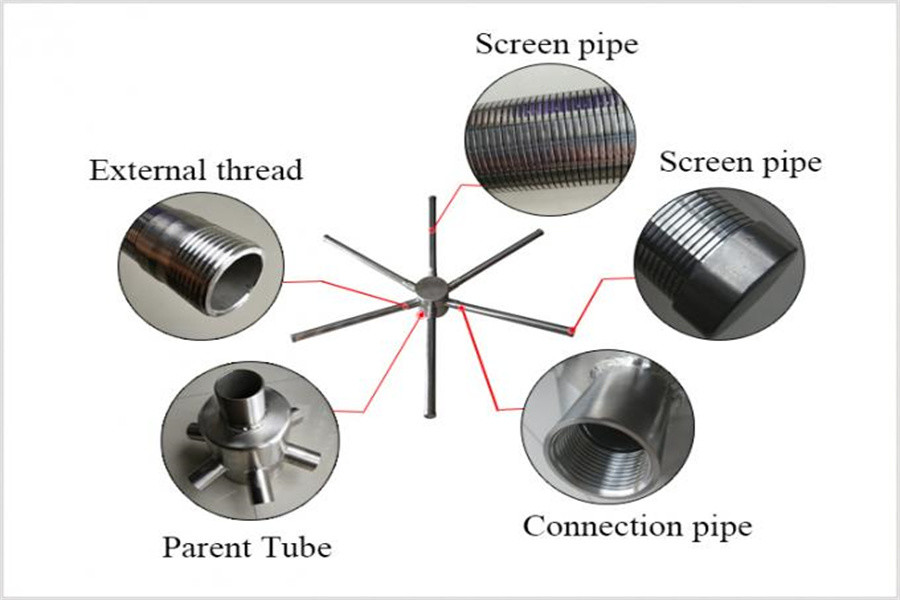

    Slot sizeScreen lateral diameter (mm)Vertical hub diameter (mm)Screen lateral flange diameter (mm)Vertical hub flange diameter (mm)Numbers of screen lateral
    0.05
    0.1
    0.2
    0.3
    0.5
    1
    32
    40
    57
    76
    89
    76
    89
    108
    133
    159
    219
    25
    32
    40
    50
    65
    80
    50
    65
    80
    100
    125
    150
    6
    8
    10
    12

    welded wedge wire candle filters FEATURES:


    • Backwashable welded wedge wire FOTI tubes
    • Low heel volume
    • Easy to clean smooth filtration surface
    • Outside to inside flow
    • No moving parts
    • Permanent Filter element
    • Fine Filtration down to particles (10 Microns and above)

    ADVANTAGES: welded wedge wire candle filters

    • Clean and hygienic operation
    • Highest level safety for operator and process
    • Eco-friendly operation
    • Stand alone equipment
    • Backwashing facility
    • Permanent candles
    • Steam back-washable

    Johnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input DeviceJohnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input DeviceJohnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input DeviceJohnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input DeviceJohnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input DeviceJohnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input DeviceJohnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input DeviceJohnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input DeviceJohnson Wedge Wire Filter Tube Resin Trap Strainer Pipe In Water Input Device


    FAQ


    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time?

    A: 3-5 days for Sample preparing , 15-25 working days for mass production.


    Q3. Do you have any MOQ limit for the order?

    A: Low MOQ, 3pc for sample checking is available.


    Q4. How do you ship the goods and how long does it take to arrive?

    A: Airline, sea shipping and rail transportation are all optional.

    Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.


    Q5. How to proceed an order?

    A: Firstly let us know your need specification or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customer confirms and places deposit for formal order.

    Fourthly We arrange the production.


    Q6. Is it OK to print my logo on the product?

    A: Yes. Please inform us formally before our production.
