Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange

Anping County Xinlu Wire Mesh Products Co., Ltd.
Contact Now
    Buy cheap Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange from wholesalers

    Buy cheap Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange from wholesalers
    • Buy cheap Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange from wholesalers
    • Buy cheap Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange from wholesalers
    • Buy cheap Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange from wholesalers
    • Buy cheap Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange from wholesalers
    • Buy cheap Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange from wholesalers
    • Buy cheap Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange from wholesalers

    Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange

    Ask Lasest Price
    Brand Name : Anping County Xinlu Wire Mesh Products Co.,Ltd
    Model Number : XL - Wedge Wire Screen Pipe - 024
    Certification : CO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs/20days
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange

    Resin Trap AISI 316L Wedge Wire Wrapped Candle Filter Pipe with Flange


    Category: Resin Traps

    Material: stainless steel 304,304L,316,316L,321,430 or as per your request.

    Properties: resin trap

    Application: water-treatment, beer brewing, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, refining & petrochemical


    Product Details

    Wedge wrapped wire Candle filter pipe resin trap stainless steel screen pipe with flanges is used downstream from ion exchange vessels and serves as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. Xinlu offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of Hastelloy construction.


    Advantage of Wedge wrapped wire candle filter pipe resin trap stainless steel screen pipe with flange

    1. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water-bearing zone
    2. Uninterrupted flow.
    3. A uniform and efficient well development due to the continuous slot opening.
    4. Good strength, no further support structure needed.


    Application of Wedge wrapped wire candle filter pipe resin trap stainless steel screen pipe with flange

    Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.


    Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With FlangeResin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange

    Specifications of Wedge wrapped wire candle filter pipe resin trap stainless steel screen pipe with flange:

    TypeSlots mmΦAFlange DNL1mm
    RTF10.05, 0.1, 0.2 0.3, 0.5, 1.0

    45,57,76,89,108,

    133, 159, 219

    40,50,65,80,

    100,125,150,

    200

    442,496,547,

    600,654,705,

    758,812,863,

    916,970,1021,

    1074,1128,1179,

    1232, 1286

    Our range of welded wedge wire candle filters are ideal for removing particles of very small size up to 10 microns. These filters can be easily washed through a back flush of the steam. We also provide options for different attachments to meet the specific process requirements of the clients.

    welded wedge wire candle filters Specification

    No.Model Type

    N,D--mm

    D

    Branch Pipe Dia

    d (Φmm)

    Branch Pipe Number

    PN0.6/DN

    Dimension of main pipe

    1FY-XL-125125025-576-8DN80
    2FY-XL-160160028-576-8DN80
    3FY-XL-180180032-658-12DN80-DN100
    4FY-XL-200200042-898-12DN80-DN125
    5FY-XL-220220042-898-12DN100-DN125
    6FY-XL-250250057-898-16DN100-DN125
    7FY-XL-280280057-898-20DN100-DN150
    8FY-XL-300300057-898-20DN125-DN200
    9FY-XL-320320057-898-22DN125-DN200

    Note: Center distribution deainage device has many types: crossing type, fishbone type and straight type, etc
    Material: 304,321,316,316L,904L ,HastalloyB and C, ets
    Alll main pipes are adopted with flexible flange.


    Slot sizeScreen lateral diameter (mm)Vertical hub diameter (mm)Screen lateral flange diameter (mm)Vertical hub flange diameter (mm)Numbers of screen lateral
    0.05
    0.1
    0.2
    0.3
    0.5
    1
    32
    40
    57
    76
    89
    76
    89
    108
    133
    159
    219
    25
    32
    40
    50
    65
    80
    50
    65
    80
    100
    125
    150
    6
    8
    10
    12

    welded wedge wire candle filters FEATURES:


    • Backwashable welded wedge wire FOTI tubes
    • Low heel volume
    • Easy to clean smooth filtration surface
    • Outside to inside flow
    • No moving parts
    • Permanent Filter element
    • Fine Filtration down to particles (10 Microns and above)

    ADVANTAGES: welded wedge wire candle filters

    • Clean and hygienic operation
    • Highest level safety for operator and process
    • Eco-friendly operation
    • Stand alone equipment
    • Backwashing facility
    • Permanent candles
    • Steam back-washable

    FAQ


    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time?

    A: 3-5 days for Sample preparing , 15-25 working days for mass production.


    Q3. Do you have any MOQ limit for the order?

    A: Low MOQ, 3pc for sample checking is available.


    Q4. How do you ship the goods and how long does it take to arrive?

    A: Airline, sea shipping and rail transportation are all optional.

    Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.


    Q5. How to proceed an order?

    A: Firstly let us know your need specification or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customer confirms and places deposit for formal order.

    Fourthly We arrange the production.


    Q6. Is it OK to print my logo on the product?

    A: Yes. Please inform us formally before our production.

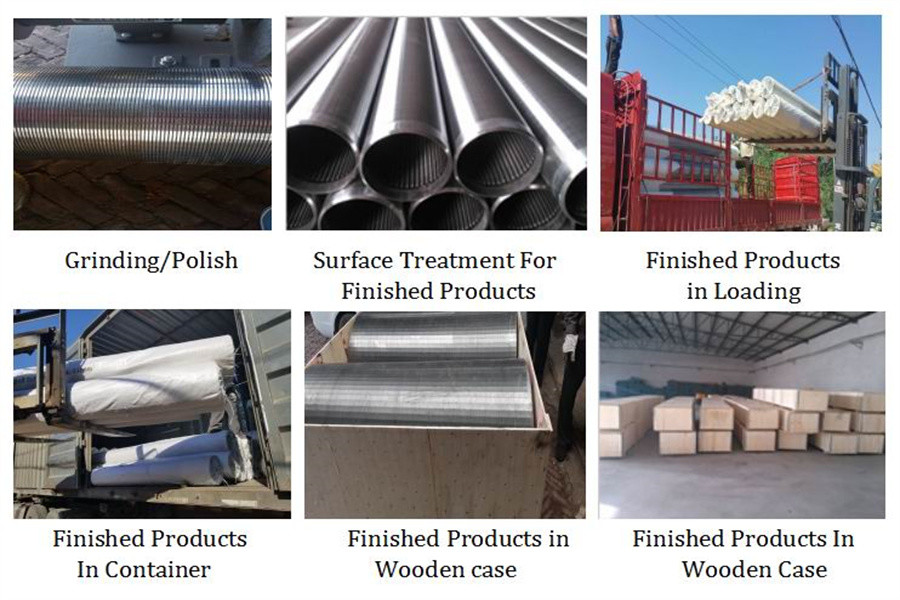

    Resin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With FlangeResin Trap AISI 316L Wedge Wire Screen Pipe Wrapped Candle Filter Tube With Flange
